Description
Sunpak Heaters can effectively heat outdoors because they warm people with infrared radiant heat instead of hot air. Radiant heat warms people and objects such as tables, chairs and floor directly without heating the intervening air. Turn the heaters on to HIGH to warm up a chilled patio and adjust the heaters down to LOW as your guests get comfortable. Proper patio layout and design are important with any patio heating system. We always recommend working with a professional installer to maximize coverage and ensure safety. Each Sunpak heater is CSA designed certified to rigid ANSI standards.
S34-TSH Specifications
- 25,000-34,000 BTH/Hr
- Black or Stainless Steel

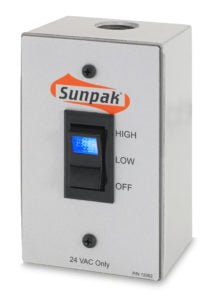

- Two-Stage Control
- Natural Gas or Propane
- 24 VAC – 20 VA
- Electronic Ignition
- Wall or Ceiling Mounted
- CSA Design Certified
- Rain Protected
- Optional Beveled Face Trim
TSH Natural Gas Models
| Item No. | Model | BTU Range | Gas Type | Finish | Electrical | Wt. |
|---|---|---|---|---|---|---|
|
12040
|
S34-TSH SST
|
25,000 – 34,000 Btu/hr
|
Natural Gas
|
Stainless Steel
|
24 VAC / 20 VA
|
41 lbs
|
|
12042
|
S34-TSH BLK
|
25,000 – 34,000 Btu/hr
|
Nautral Gas
|
Black
|
24 VAC / 20 VA
|
41 lbs
|
Specification: Patio Heater shall be Sunpak Model S34-TSH or equivalent with adjustable input from 25,000-34,000 Btu/Hr, utilizing a ceramic burner, electronic ignition, flame rectification safety, operating with 24 VAC control. Heater casing to have dimensions of 8″ x 8″ x 48″ long and the heater must be CSA design certified for outdoor use. Follow Manufacturer’s clearance to combustibles requirements.
Mounting kit should be specified as Item No. 12006 – Mounting Kit Black or 12006-6 Mounting Kit Stainless. Kits are universal to all Sunpak models.
TSH Propane Models
| Item No. | Model | BTU Range | Gas Type | Finish | Electrical | Wt. |
|---|---|---|---|---|---|---|
|
12041
|
S34-TSH SST LP
|
25,000 – 34,000 Btu/hr
|
Propane
|
Stainless Steel
|
24 VAC / 20 VA
|
41 lbs
|
|
12044
|
S34-TSH BLK LP
|
25,000 – 34,000 Btu/hr
|
Propane
|
Black
|
24 VAC / 20 VA
|
41 lbs
|

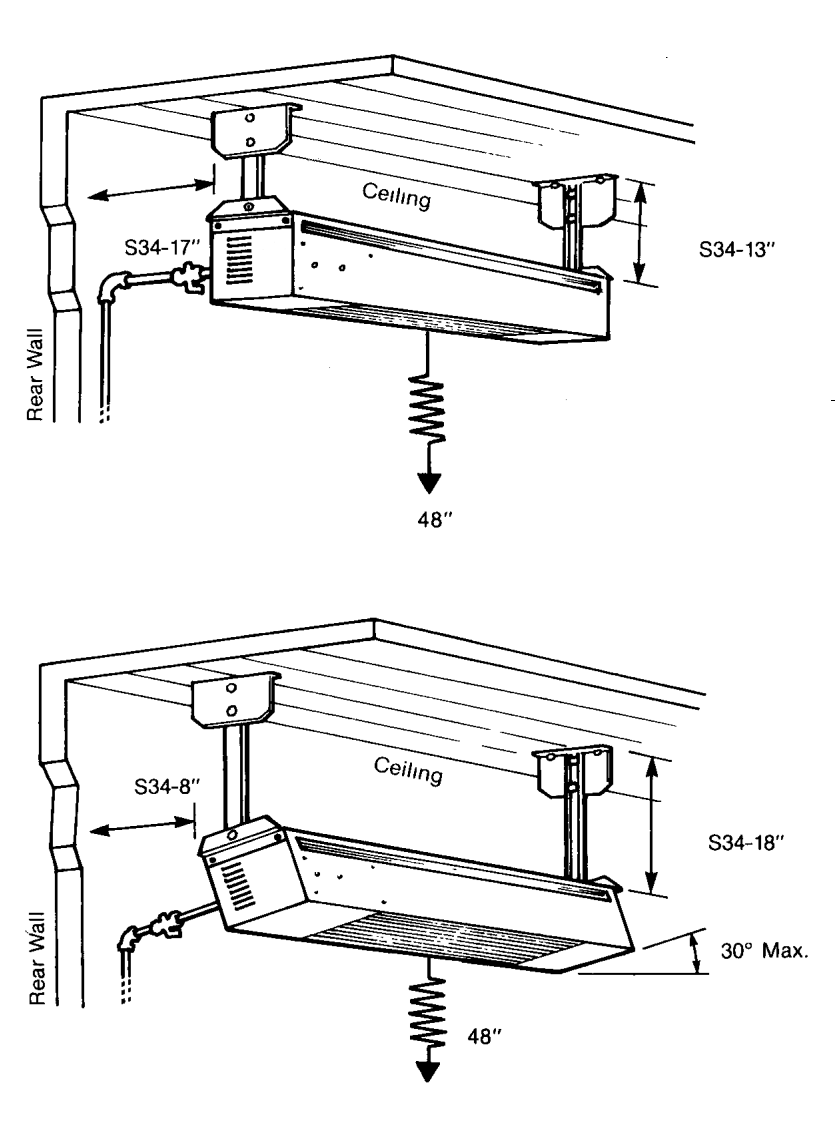

S34-TSH Minimum Clearances
Radiant heat comes out through the aluminum grill below and hot exhaust gases exit from the top of the unit.
Adequate space around each heater is required even when the materials surrounding the heater are non- combustible to provide adequate combustion air and ventilation of exhaust gases. Heaters should never be located in a ceiling recess or soffit.
Each heater must be installed such that the following “Minimum Clearance to Combustible Materials’ are maintained. Combustible materials include wood, compressed paper, plant fibers, plastic, Plexiglas® or other materials capable of being ignited and burned. Such materials shall be considered combustible even though flame-proofed, fire retardant treated or plastered. Additional clearance may be required for glass, painted surfaces, vinyl siding or other materials which may be damaged by radiant or convection heat.
Minimum Clearance to Combustibles
| Model | BTU/h | Side In | Rear In | Ceiling In | Below In | Mtg Angle |
|---|---|---|---|---|---|---|
|
S34
|
34,000
|
24″
|
17″
|
13″
|
48″
|
Horizontal
|
|
S34
|
34,000
|
24″
|
8″
|
18″
|
48″
|
30° Max
|
