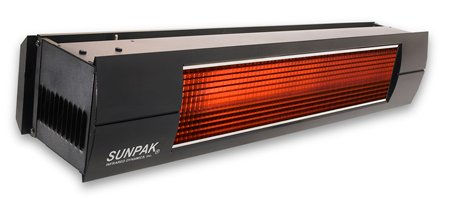

Description
The Sunpak S34-TSR should always be started up and operated on the HIGH mode for the first 5 minutes to allow the heater to warm up. Starting up the heater on the LOW mode before the heater is warmed up may cause the heater to shut down prematurely. To correct this situation press the OFF button followed by the ON button and the HI button. Always PRESS the button for at least 1 second to allow proper transmission of the remote signal.

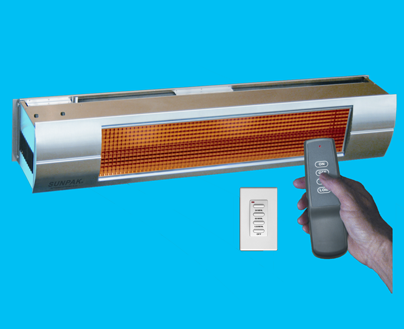

Although these heaters are designed for outdoor installation and use, it is important that the wireless remote control(s) be protected from the weather. Should the remote control become wet, it may be necessary to replace the control. Keep controls out of reach of children. Each control has four buttons (ON OFF HI LOW). The remote controls are powered by batteries. The remote control has an approximate 25 foot line of sight range. Weak batteries can limit the effective range of operation.
S34-TSR Specifications
- 25,000-34,000 BTH/Hr
- Black or Stainless Steel
- Two-Stage Control
- Natural Gas or Propane
- 7.5 V DC control system
- Wireless Handheld & Wall Remotes
- Programmable up to 3 controls
- Electronic Ignition
- Wall or Ceiling Mounted
- Rain Protected
- CSA Design Certified
- Optional Beveled Face Trim
- Optional Wireless Timer
TSR Models (Nat Gas & LP)
| Item No. | Model | BTU Range | Gas Type | Finish | Electrical | Wt. |
|---|---|---|---|---|---|---|
|
12021-3
|
S34-TSR SST
|
25,000 – 34,000 Btu/hr
|
Natural Gas
|
Stainless Steel
|
7.5V DC
|
41 lbs
|
|
12024
|
S34-TSR BLK
|
25,000 – 34,000 Btu/hr
|
Nautral Gas
|
Black
|
7.5V DC
|
41 lbs
|
|
12021-4
|
S34-TSR SST LP
|
25,000 – 34,000 Btu/hr
|
Propane
|
Stainless Steel
|
7.5V DC
|
41 lbs
|
|
12025
|
S34-TSR BLK LP
|
25,000 – 34,000 Btu/hr
|
Propane
|
Black
|
7.5V DC
|
41 lbs
|
Specification: Patio Heater shall be Sunpak Model S34-TSR or equivalent with adjustable input from 25,000-34,000 Btu/Hr, utilizing a ceramic burner, electronic ignition, flame rectification safety, operating with 7.5 VDC control, wireless handheld remote. Heater casing to have dimensions of 8″ x 8″ x 48″ long and the heater must be CSA design certified for outdoor use. Follow Manufacturer’s clearance to combustibles requirements.
Mounting kit should be specified as Item No. 12006 – Mounting Kit Black or 12006-6 Mounting Kit Stainless. Kits are universal to all Sunpak models.
S34-TSR Minimum Clearances
Radiant heat comes out through the aluminum grill below and hot exhaust gases exit from the top of the unit.
Adequate space around each heater is required even when the materials surrounding the heater are non- combustible to provide adequate combustion air and ventilation of exhaust gases. Heaters should never be located in a ceiling recess or soffit.
Each heater must be installed such that the following “Minimum Clearance to Combustible Materials’ are maintained. Combustible materials include wood, compressed paper, plant fibers, plastic, Plexiglas® or other materials capable of being ignited and burned. Such materials shall be considered combustible even though flame-proofed, fire retardant treated or plastered. Additional clearance may be required for glass, painted surfaces, vinyl siding or other materials which may be damaged by radiant or convection heat.
Minimum Clearance to Combustibles
| Model | BTU/h | Side In | Rear In | Ceiling In | Below In | Mtg Angle |
|---|---|---|---|---|---|---|
|
S34
|
34,000
|
24″
|
17″
|
13″
|
48″
|
Horizontal
|
|
S34
|
34,000
|
24″
|
8″
|
18″
|
48″
|
30° Max
|
